V Series Submersible Sewage  water Pump

Applications

For drainage slurry, waste water, containing fibre, waste, sand etc.

For irrigation of agricluture, architecture, mine, environment protection .

For methane pools


Operating conditions

Maximum operating depth: 0.5~5m

Maximum medium temperature: +40ºC

Liquid pH value: 4-10

Max. Liquid density: 1.2*10³kg/m³


Specifications & Features

Insulation Class: B

Protection Class: IP68

Winding: Copper wire

Thermal protector: Built in

Shaft: AISI304 welded / 45# steel electroplated

Impeller: openning cast iron impeller

Mechanical seal: Carbon/Ceramic/Stainless steel

Standard: With 8m cable & float switch

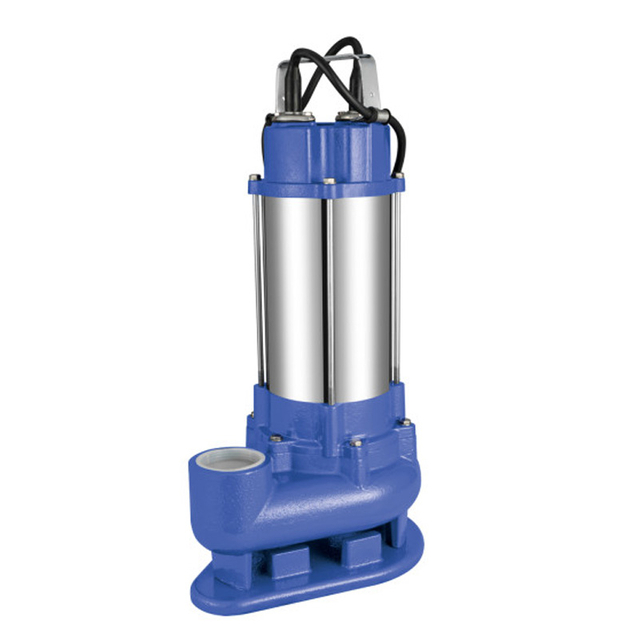

A TYPE: V180 V250 V550 V750 V1100 V1500 V2200

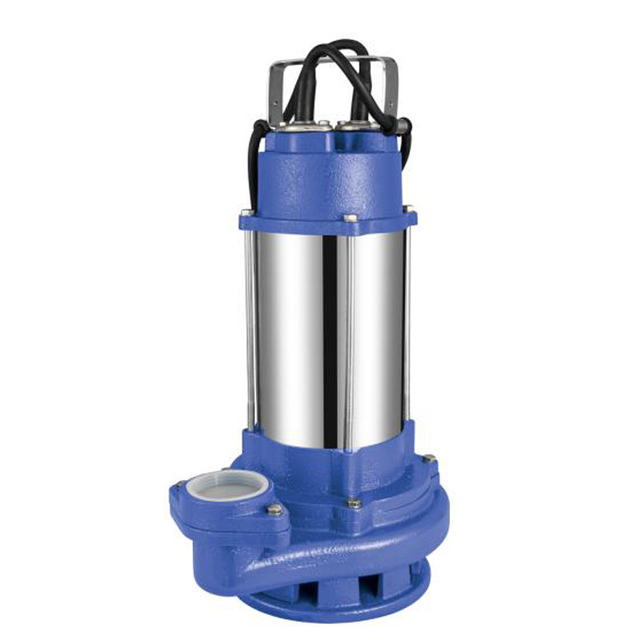

H TYPE: V750 V1500   (HIGH DELIVERY)

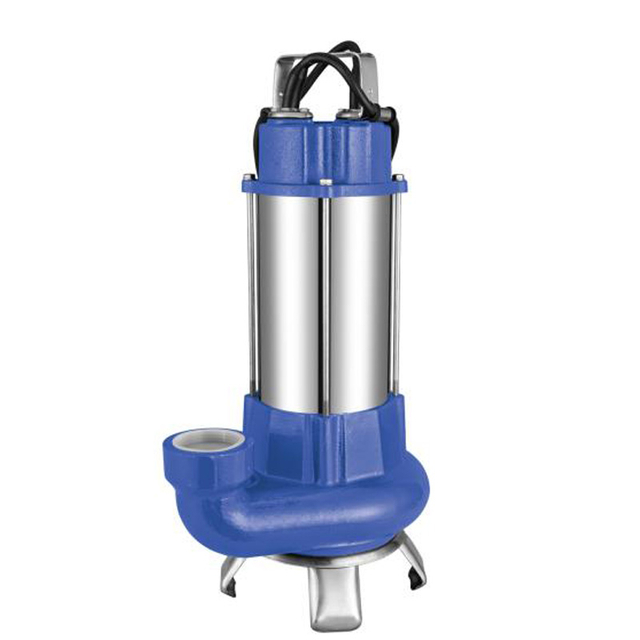

S TYPE: V1100 V1500  (STAINLESS STEEL BOTTOM)

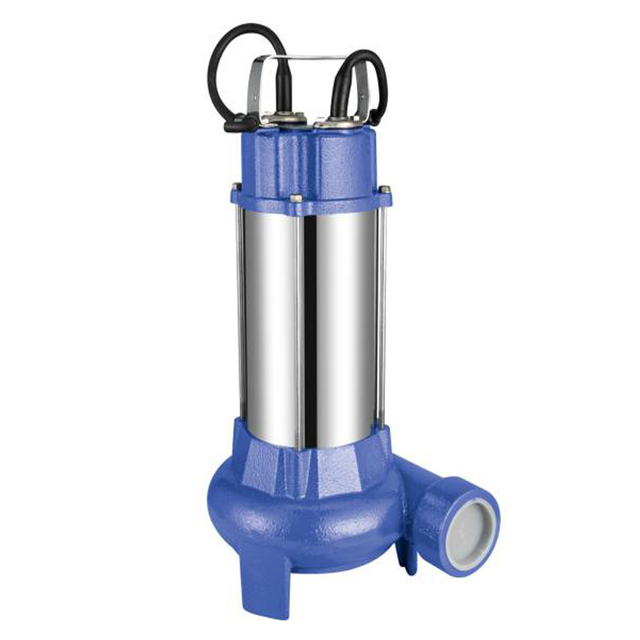

C TYPE: V800, V1100, V1300  (WITH CUTTER)

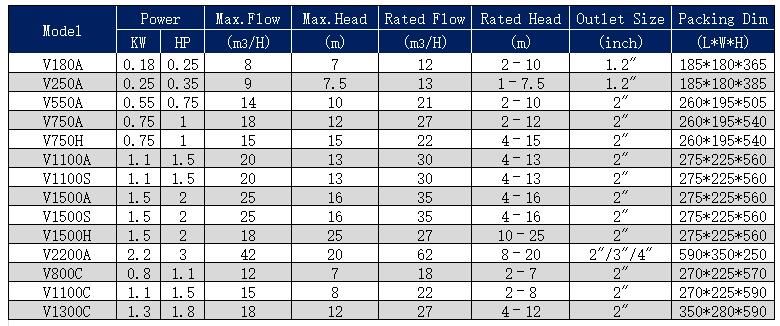

 PERFORMANCE DATA

V参数
