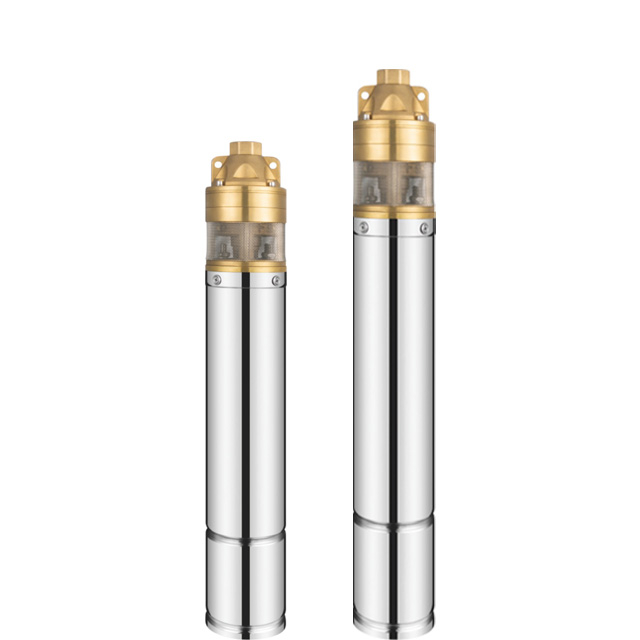

3SKM75-0.5KW
KATREENI
8413701090
Product Description
Applications
For Water supply from wells or reservoirs
For Sprinkler irrigaton
For domestic use, for civil and industrial applications
For garden use and irrigation
Motor and Pump
Rewindable motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415V/50Hz
Dimension complied with NEMA standard
Curve tolerance accord with ISO9906
Options on Request
Special material components
Start control box or automatic digital control box
Cable length
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Component Material
Components | Material |
Delivery casing | Cast-Cu ASTMC8500 |
Suction lantern | Cast-Cu ASTMC8500 AISI 202SS |
Diffuser | Cast-Cu ASTMC8500 AISI 202SS |
Impeller | Cast-Cu ASTMC85500 |
Strainer | AISI304SS |
Moter External Casing | AISI304SS |
Top chock | AISI 403SS Cast-ironASTM NO.3O |
Bottom support | AISI 304SS |
Mechanical seal | Special seal for Deep well(Graphite-Ceramic/TC) |
Shaft | AISI 303SS-ASTM 1045 |
Bearing | NSK |
Seal lubricant oil | Oil for foodmachinery and pharmaceutic use |
Component Picture
Product Parameters
Performance Data
MODEL | POWER | DELIVERY n≈2850 r/min | |||||||||||
50HZ | KW | HP | Q m3/h l/min | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||||
3SK75 | 0.5 | 0.75 | H(m)/ outlet (inch) 1'' | 36 | 32 | 29 | 25 | 21 | 17 | 14 | 10 | 6 | / |
3SK100 | 0.75 | 1 | 54 | 48 | 42 | 36 | 30 | 24 | 18 | 12 | 6 | / | |
4SK100 | 0.75 | 1 | 58 | 52 | 46 | 40 | 34 | 28 | 22 | 16 | 10 | / | |
4SK150 | 1.1 | 1.5 | 100 | 89 | 79 | 69 | 59 | 48 | 38 | 28 | 17 | 7 | |
4SK200 | 1.5 | 2 | 110 | 99 | 88 | 78 | 67 | 56 | 45 | 34 | 23 | 23 |
Performance Curve
Production Corner
Product Description
Applications
For Water supply from wells or reservoirs
For Sprinkler irrigaton
For domestic use, for civil and industrial applications
For garden use and irrigation
Motor and Pump
Rewindable motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415V/50Hz
Dimension complied with NEMA standard
Curve tolerance accord with ISO9906
Options on Request
Special material components
Start control box or automatic digital control box
Cable length
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Component Material
Components | Material |
Delivery casing | Cast-Cu ASTMC8500 |
Suction lantern | Cast-Cu ASTMC8500 AISI 202SS |
Diffuser | Cast-Cu ASTMC8500 AISI 202SS |
Impeller | Cast-Cu ASTMC85500 |
Strainer | AISI304SS |
Moter External Casing | AISI304SS |
Top chock | AISI 403SS Cast-ironASTM NO.3O |
Bottom support | AISI 304SS |
Mechanical seal | Special seal for Deep well(Graphite-Ceramic/TC) |
Shaft | AISI 303SS-ASTM 1045 |
Bearing | NSK |
Seal lubricant oil | Oil for foodmachinery and pharmaceutic use |
Component Picture
Product Parameters
Performance Data
MODEL | POWER | DELIVERY n≈2850 r/min | |||||||||||
50HZ | KW | HP | Q m3/h l/min | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||||
3SK75 | 0.5 | 0.75 | H(m)/ outlet (inch) 1'' | 36 | 32 | 29 | 25 | 21 | 17 | 14 | 10 | 6 | / |
3SK100 | 0.75 | 1 | 54 | 48 | 42 | 36 | 30 | 24 | 18 | 12 | 6 | / | |
4SK100 | 0.75 | 1 | 58 | 52 | 46 | 40 | 34 | 28 | 22 | 16 | 10 | / | |
4SK150 | 1.1 | 1.5 | 100 | 89 | 79 | 69 | 59 | 48 | 38 | 28 | 17 | 7 | |
4SK200 | 1.5 | 2 | 110 | 99 | 88 | 78 | 67 | 56 | 45 | 34 | 23 | 23 |
Performance Curve
Production Corner
Optional package
Transport Line
Optional package
Transport Line
Why Choose Us
KATREENI has been operating in the water pump industry for years.
It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.
We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.
We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.
Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.
Certificates
Workshop Corner
Why Choose Us
KATREENI has been operating in the water pump industry for years.
It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.
We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.
We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.
Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.
Certificates
Workshop Corner
Exhibition
Exhibition
FAQ
1. Q: What is your warranty?
A: 12-18 months' warrantv, depending on product and market
2. Q: What is your MOQ?
A: Sample order is acceptable.
3.Q: What's your payment terms?
A: T/T, L/C, D/P...
4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.
5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.
6.Q:Can you accept customized products?
A: Yes, we accept special requirement.
7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
FAQ
1. Q: What is your warranty?
A: 12-18 months' warrantv, depending on product and market
2. Q: What is your MOQ?
A: Sample order is acceptable.
3.Q: What's your payment terms?
A: T/T, L/C, D/P...
4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.
5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.
6.Q:Can you accept customized products?
A: Yes, we accept special requirement.
7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
