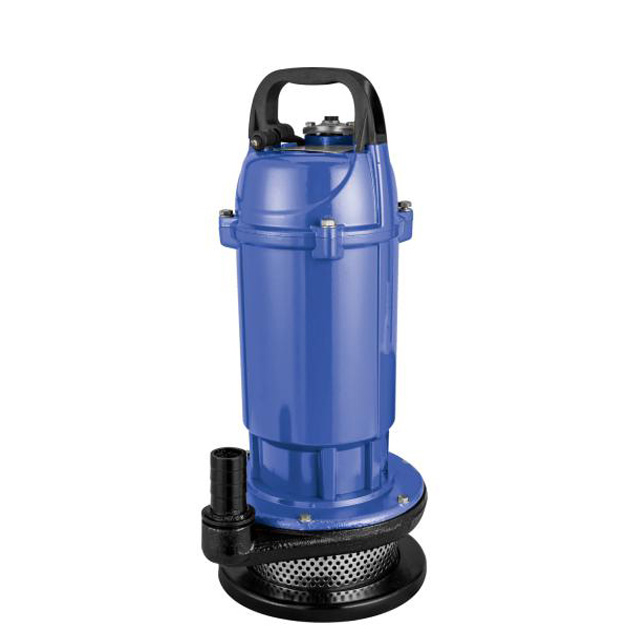

Home use single phase self-suction submersibe water pump

Operating conditions
Liquid temperature up to 35° C
The solid in water ≤0.1%,particle size≤0.2MM
Liquid PH :6.2-8.5
Max.Ambient Temperature:40° C
Max.Immersed depth:0.5-5m
insulation class:B/F
Protection class:IPX8
Built-in protector & Double sealing structure
With float switch and 8m Cable
110V/127V/220V/380V440V,50Hz/60Hz available.
Availability:
Quantity:
Inquire Add to Basket

  • QDXA2

  • KATREENI

  • 8413701090

Product Introduction

QDXA-2

Prescription
All copper coil,strong power,built-in over hat protector to prevent burning,
high precision bearings,wear-resistant and corrosion-resistant.cast iron
pump body. stable operation, 304 stainless steel mesh cover,beautiful appearance,
durable,pumping simply,complete variety.

Application
For water tower
Drainage water from well or river
Family water supply
Farmland and garden irrigation

Livestock breeding
Water supply for industry and construction

Using method
when the pump is working, the pump body should be kept blow the water.


Component Material

Component Material
Housing Aluminium
Impeller Aluminium/PPO
Shaft AISI304
Mechanical seal Ceramic/Graphite


Performance Data

MODEL POWER Max.Flow (m3/h) Max.Head (m) Rated  Flow   (m3/h) Rated   Head (m) Outlet size  (Inch) Packing Dim.(L*W*H)
KW HP
QDX1.5-12-0.25A/B 0.25 0.37 4.6 13.2 1.5 12 1'' 196*144*360
QDX1.5-16-0.37A/B 0.37 0.5 5.8 17.4 1.5 16 1'' 196*144*365
QDX6-10-0.37A/B 0.37 0.5 13 12 6 10 1.5'' 209*145*371
QDX3-20-0.55A/B 0.55 0.75 7.7 20 3 20 1'' 205*158*379
QDX10-10-0.55A/B 0.55 0.75 16.8 12.2 10 10 1.5'' 223*159*393
QDX15-7-0.55A/B 0.55 0.75 21.5 9.9 15 7 2'' 233*158*391
QDX1.5-25-0.55A/B 0.55 0.75 6.7 25.4 1.5 25 1'' 240*190*378
QDX1.5-32-0.75A/B 0.75 1 7.9 34 1.5 32 1'' 240*190*398
QDX7-18-0.75A/B 0.75 1 19.6 20.6 7 18 1.5''/2'' 235*159*401
QDX30-6-0.75A/B 0.75 1 44 8.6 30 6 3'' 267*184*434
QDX15-10-0.75A/B 0.75 1 26 12.7 15 10 2.5'' 233*170*411
QDX10-16-0.75A/B 0.75 1 17.3 18.4 10 16 2'' 235*159*401
QDX6-26-1.1A/B 1.1 1.5 14 27.1 6 26 1.5'' 254*190*451
QDX15-15-1.1A/B 1.1 1.5 26.8 17.5 15 15 2''/2.5'' 247*172*457
QDX40-7-1.1A/B 1.1 1.5 48.7 9.8 40 7 3'' 276*194*484
QDX15-18-1.5A/B 1.5 2 30.8 20 15 18 2''/2.5'' 247*172*457
QDX40-9-1.5A/B 1.5 2 51.7 13.7 40 9 3'' 280*196*480
QDX50-7-1.5A/B 1.5 2 68 11.9 50 7 4'' 530*196*310
QDX65-8-2.2A/B 2.2 3 84 14 65 8 4'' 364*230*544
QDX70-9-3A 3 4 95 13 70 9 5'' 480*280*250
QDX80-4-4A 4 5.5 102 12 80 7 6'' 540*330*250


Performance Curve

QDX


Why Choose Us

工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificate

证书1
证书2
证书3


Workshop Corner

车间2

Exhibition

展会


展会2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
