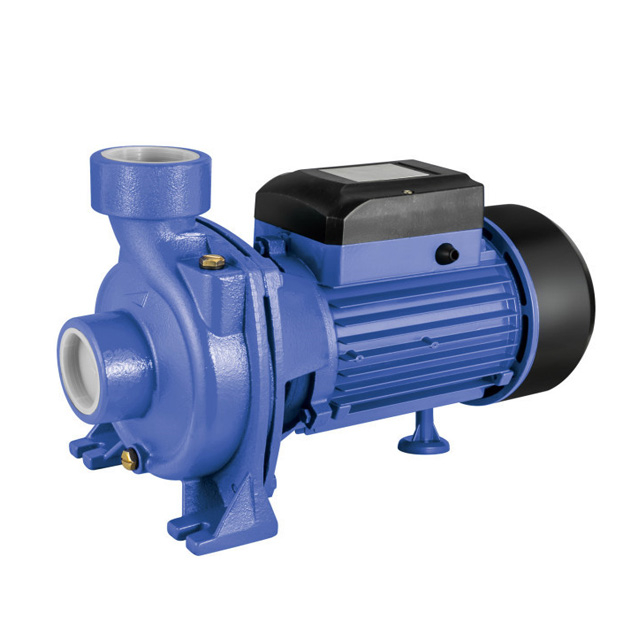

MHF centrifugal big power surface water pump

Applications

For water supply and drainage of no-sand water and well water.

For farmland, breeding, garden, hotel, canteen and high-rise buildings.

For water pressurization and cooling circulating water such as air conditioners and boilers

For industry use

For transfering clean water or other liquids similar to water in physical and chemical properties.

Operating Conditions

Trans medium pH:  6-8.5

Fluid temperature limit: 40ºC

Max ambient temperature: 40ºC

Max.Suction: 8m

Max.working pressure: 6 bar

Insulation Class: B/F

Protection Class: IPx4

Model includes single-phase and three-phase

Component Material

Motor :two-pole induction motor(n=2850rpm)

Pump body: Cast iron

Pump support: Cast iron/ Aluminum

Motor housing: Aluminum

Impeller: Brass/ AISI304/PPO

Shaft : stainless steel welded/ electroplated iron

Mechanical seal: Carbon/ Ceramic

Bearing: NSK/ C&U

Cooling:External ventilation

Thermal protector: built in or without
