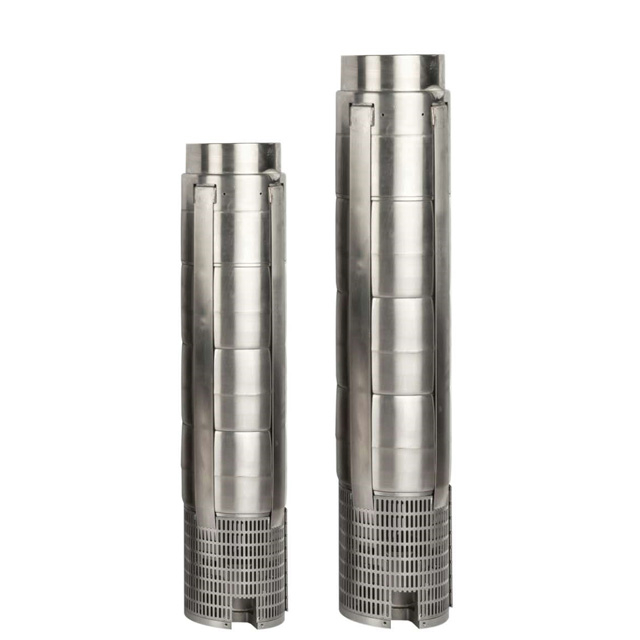

10SP160-3
KATREENI
8413701090
Product Introduction
Applications
For water supply from borehole wells and river
For industrial applications and domestic and civil use.
For irrigation in salt influenced water environment.
For pressure boosting
Fire-fighting
Operating Conditions
Maximum fluid temperature up to +35 oC
Maximum sand content: 0.25%
Maximum immersion: 120m.
Maximum well diameter: 3" 4" 5" 6" 8" 10"
Options on Request
Other voltages or frequency 60Hz
Special mechanical seal and bearing brand
Single phase motor with buit-in capacitor
Special automatic digital control box and cable length
Pump and Motor
AISI304 motor parts.
According to NEMA dimension standard.
Curve tolerance according to ISO 9906
Specifications
Rewindable motor or fully enclosed shielding motor
Single-phase: 220V-240V/50Hz
Three-phase :380V-415V/50Hz
Component Materials
| Components | Material |
| Pump external casing | AISI 304 SS |
| Outlet | AISI 304 SS |
| Connection | AISI 304 SS |
| Diffuser | AISI 304 SS |
| Impeller | AISI 304 SS |
| Pump shaft | 1Cr13 AISI 304 SS |
| Shaft coupling | 1Cr13 AISI 304 SS |
| Wear ring | AISI 304 SS&Ceramic |
| Motor external casing | AISI 201 SS AISI 304 SS |
| Top chock | Cast-Cu ASTM C85500 Cast-Iron ASTM No.30 |
| Botton support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic/TC Graphite-Silicon carbide |
| Motor shaft | AISI 303 SS-ASTM 1045/5140 |
| Bearing | C&U Others |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use |
Component Pictures
Performance Data
| MODEL | POWER | DELIVERY n≈2850 r/min | ||||||||
| 3~380V/415V | KW | HP | Q m3/h l/min | 0 | 50 | 80 | 100 | 125 | 140 | 160 |
| 0 | 833 | 1333 | 1666 | 2000 | 2333 | 2866 | ||||
| 10SP125-1 | 11 | 15 | H(m)/ outlet(inch) 5'' | 30 | 28 | 24 | 22 | 20 | 17 | 13 |
| 10SP125-2 | 22 | 30 | 59 | 55 | 49 | 45 | 40 | 35 | 26 | |
| 10SP125-3 | 30 | 40 | 87 | 83 | 74 | 67 | 50 | 43 | 40 | |
| 10SP125-4 | 37 | 50 | 115 | 110 | 96 | 91 | 80 | 70 | 52 | |
| 10SP125-5 | 55 | 75 | 146 | 141 | 127 | 118 | 100 | 95 | 62 | |
| 10SP125-6 | 63 | 85 | 178 | 165 | 142 | 130 | 120 | 100 | 75 | |
| 10SP125-7 | 75 | 100 | 208 | 192 | 165 | 152 | 140 | 115 | 89 | |
| 10SP125-8 | 93 | 125 | 235 | 220 | 189 | 172 | 160 | 132 | 100 | |
| 10SP125-9 | 93 | 125 | 264 | 248 | 214 | 195 | 180 | 150 | 112 | |
| MODEL | POWER | DELIVERY n≈2850 r/min | ||||||||
| 3~380V/415V | KW | HP | Q m3/h l/min | 0 | 100 | 120 | 140 | 160 | 180 | 200 |
| 0 | 1667 | 2000 | 2333 | 2667 | 3000 | 3333 | ||||
| 10SP160-1 | 13 | 17.5 | H(m)/ outlet(inch) 5'' | 33 | 25 | 23 | 22 | 20 | 18 | 16 |
| 10SP160-2 | 26 | 35 | 65 | 50 | 46 | 44 | 40 | 36 | 31 | |
| 10SP160-3 | 37 | 50 | 99 | 75 | 69 | 66 | 60 | 52 | 47 | |
| 10SP160-4 | 55 | 75 | 132 | 100 | 92 | 88 | 80 | 72 | 65 | |
| 10SP160-5 | 63 | 85 | 160 | 135 | 121 | 110 | 100 | 90 | 80 | |
| 10SP160-6 | 75 | 100 | 198 | 150 | 138 | 130 | 120 | 108 | 98 | |
| 10SP160-7 | 93 | 125 | 231 | 175 | 161 | 152 | 140 | 136 | 113 | |
| 10SP160-8 | 93 | 125 | 264 | 200 | 183 | 174 | 160 | 144 | 130 | |
| 10SP160-9 | 110 | 150 | 297 | 225 | 205 | 195 | 180 | 162 | 145 | |
Performance Curve
Production of this serie
Application Scene
Product Introduction
Applications
For water supply from borehole wells and river
For industrial applications and domestic and civil use.
For irrigation in salt influenced water environment.
For pressure boosting
Fire-fighting
Operating Conditions
Maximum fluid temperature up to +35 oC
Maximum sand content: 0.25%
Maximum immersion: 120m.
Maximum well diameter: 3" 4" 5" 6" 8" 10"
Options on Request
Other voltages or frequency 60Hz
Special mechanical seal and bearing brand
Single phase motor with buit-in capacitor
Special automatic digital control box and cable length
Pump and Motor
AISI304 motor parts.
According to NEMA dimension standard.
Curve tolerance according to ISO 9906
Specifications
Rewindable motor or fully enclosed shielding motor
Single-phase: 220V-240V/50Hz
Three-phase :380V-415V/50Hz
Component Materials
| Components | Material |
| Pump external casing | AISI 304 SS |
| Outlet | AISI 304 SS |
| Connection | AISI 304 SS |
| Diffuser | AISI 304 SS |
| Impeller | AISI 304 SS |
| Pump shaft | 1Cr13 AISI 304 SS |
| Shaft coupling | 1Cr13 AISI 304 SS |
| Wear ring | AISI 304 SS&Ceramic |
| Motor external casing | AISI 201 SS AISI 304 SS |
| Top chock | Cast-Cu ASTM C85500 Cast-Iron ASTM No.30 |
| Botton support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic/TC Graphite-Silicon carbide |
| Motor shaft | AISI 303 SS-ASTM 1045/5140 |
| Bearing | C&U Others |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use |
Component Pictures
Performance Data
| MODEL | POWER | DELIVERY n≈2850 r/min | ||||||||
| 3~380V/415V | KW | HP | Q m3/h l/min | 0 | 50 | 80 | 100 | 125 | 140 | 160 |
| 0 | 833 | 1333 | 1666 | 2000 | 2333 | 2866 | ||||
| 10SP125-1 | 11 | 15 | H(m)/ outlet(inch) 5'' | 30 | 28 | 24 | 22 | 20 | 17 | 13 |
| 10SP125-2 | 22 | 30 | 59 | 55 | 49 | 45 | 40 | 35 | 26 | |
| 10SP125-3 | 30 | 40 | 87 | 83 | 74 | 67 | 50 | 43 | 40 | |
| 10SP125-4 | 37 | 50 | 115 | 110 | 96 | 91 | 80 | 70 | 52 | |
| 10SP125-5 | 55 | 75 | 146 | 141 | 127 | 118 | 100 | 95 | 62 | |
| 10SP125-6 | 63 | 85 | 178 | 165 | 142 | 130 | 120 | 100 | 75 | |
| 10SP125-7 | 75 | 100 | 208 | 192 | 165 | 152 | 140 | 115 | 89 | |
| 10SP125-8 | 93 | 125 | 235 | 220 | 189 | 172 | 160 | 132 | 100 | |
| 10SP125-9 | 93 | 125 | 264 | 248 | 214 | 195 | 180 | 150 | 112 | |
| MODEL | POWER | DELIVERY n≈2850 r/min | ||||||||
| 3~380V/415V | KW | HP | Q m3/h l/min | 0 | 100 | 120 | 140 | 160 | 180 | 200 |
| 0 | 1667 | 2000 | 2333 | 2667 | 3000 | 3333 | ||||
| 10SP160-1 | 13 | 17.5 | H(m)/ outlet(inch) 5'' | 33 | 25 | 23 | 22 | 20 | 18 | 16 |
| 10SP160-2 | 26 | 35 | 65 | 50 | 46 | 44 | 40 | 36 | 31 | |
| 10SP160-3 | 37 | 50 | 99 | 75 | 69 | 66 | 60 | 52 | 47 | |
| 10SP160-4 | 55 | 75 | 132 | 100 | 92 | 88 | 80 | 72 | 65 | |
| 10SP160-5 | 63 | 85 | 160 | 135 | 121 | 110 | 100 | 90 | 80 | |
| 10SP160-6 | 75 | 100 | 198 | 150 | 138 | 130 | 120 | 108 | 98 | |
| 10SP160-7 | 93 | 125 | 231 | 175 | 161 | 152 | 140 | 136 | 113 | |
| 10SP160-8 | 93 | 125 | 264 | 200 | 183 | 174 | 160 | 144 | 130 | |
| 10SP160-9 | 110 | 150 | 297 | 225 | 205 | 195 | 180 | 162 | 145 | |
Performance Curve
Production of this serie
Application Scene
