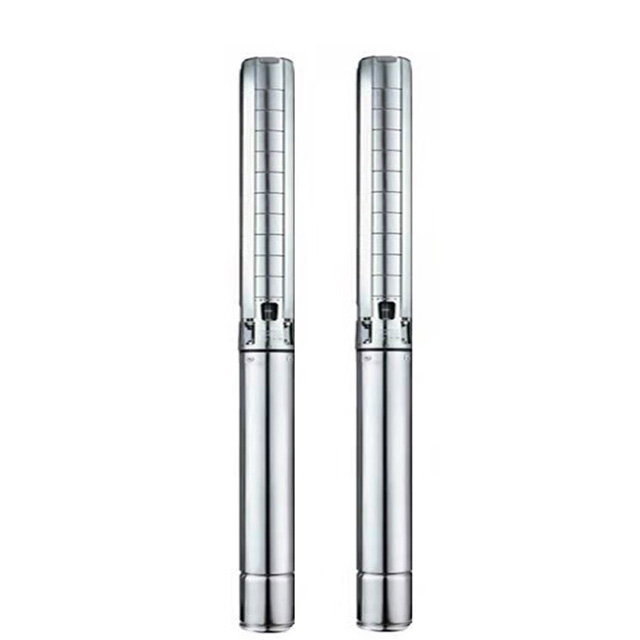

5Inch stamping series stainless steel submersible pump for domestic use

Applications

For Water supply from wells or reservoirs

For Sprinkler irrigaton

For domestic use, for civil and industrial applications

For garden use and irrigation

Operating  Conditions

Minimum well diameter : 5"

Maximum fluid temperature up to : +-50 ºC

Maximum sand content : 0.25%

Maximum immersion depth : 135m

Motor and Pump

Rewindable motor or full obturated screen motor

1.direct start(1 cable)  2. star-delta start(2 cables)

Single-phase: 220V-240V/50Hz

Three-phase: 380V-415V/50Hz

Dimension complied with NEMA standard

Curve tolerance accord with ISO2548

Maximum diameter :130mm &135mm

Options on Request

Special material components

Start control box or automatic digital control box

Cable length

Other voltages or frequency 60Hz

Single phase motor with built-in capacitor
