10 Inch Stainless Steel Borehole Deep Well Submersible Pump for Industry

Share to:

10 Inch Stainless Steel Borehole Deep Well Submersible Pump for Industry

Characters and Advantages:

Flow Range: 50m³/h-160m³/h
Head Range: 13m-264m
Rated Flow: 125m³/h
Stainless steel impeller, diffuser,outlet,connection.
Water lubricated rubber bearing with sand channel
High efficiency with built-in check valve to prevent back flow

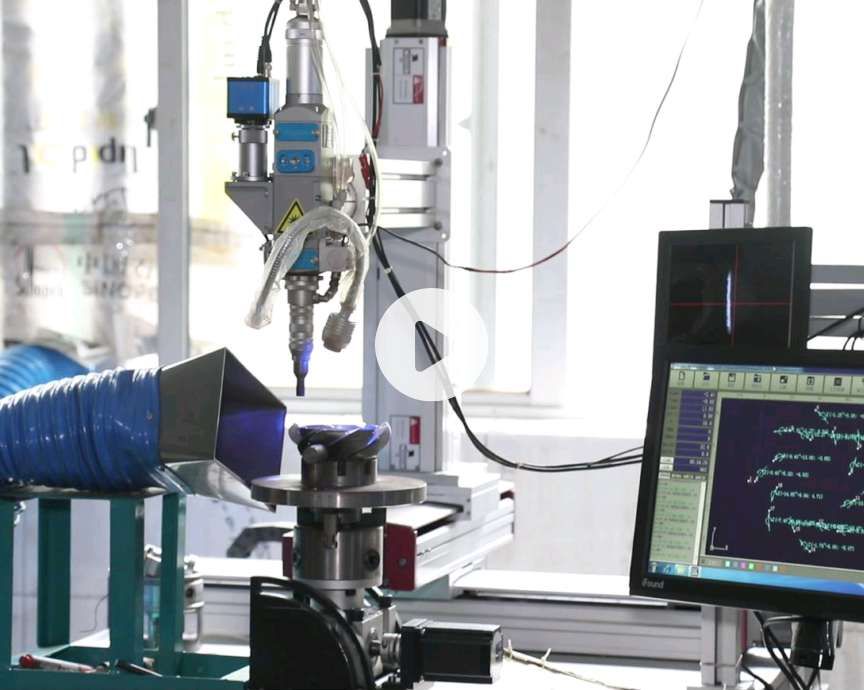

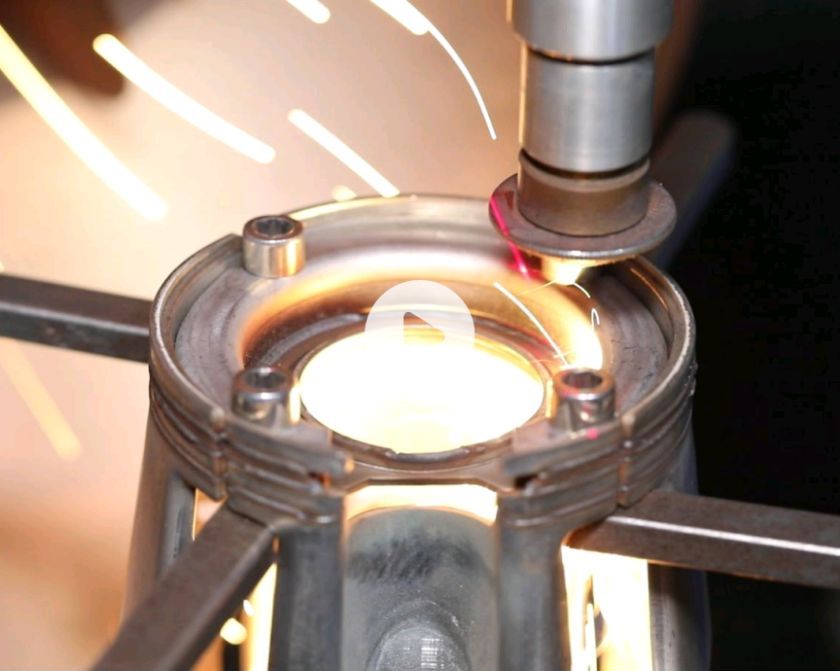

Unique laser welding creates maximum
strength,durability wear and tear resistance

Availability:

Quantity:



Inquire Add to Basket

Model:
10SP125
Brand:
KATREENI
Code:
8413701090

Product Introduction

Applications
● For water supply from borehole wells.
● For industrial applications and domestic and civil use.
● For irrigation in salt influenced water environment.

Operating conditions
● Maximum fluid temperature up to +35 ^oC
● Maximum sand content: 0.25%
● Maximum immersion: 120m.
● Maximum well diameter: 3", 4",5",6",8",10"

Options on request
● Other voltages or frequency 60Hz
● Special mechanical seal and bearing brand
● Single phase motor with buit-in capacitor
● Special automatic digital control box and cable length

Pump and Motor
● AISI304 motor parts.
● According to NEMA dimension standard.
● Curve tolerance according to ISO 9906

Component Materials

Components	Material
Pump external casing	AISI 304 SS
Outlet	AISI 304 SS
Connection	AISI 304 SS
Diffuser	AISI 304 SS
Impeller	AISI 304 SS
Pump shaft	①1Cr13 ②AISI 304 SS
Shaft coupling	①1Cr13 ②AISI 304 SS
Wear ring	AISI 304 SS&Ceramic
Motor external casing	①AISI 201 SS ②AISI 304 SS
Top chock	①Cast-Cu ASTM C85500 ②Cast-Iron ASTM No.30
Botton support	AISI 304 SS
Mechanical seal	①Graphite-Ceramic/TC ②Graphite-Silicon carbide
Motor shaft	①AISI 303 SS-ASTM 1045/5140
Bearing	①C&U ②Others
Seal lubricant oil	Oil for food machinery and pharmaceutic use

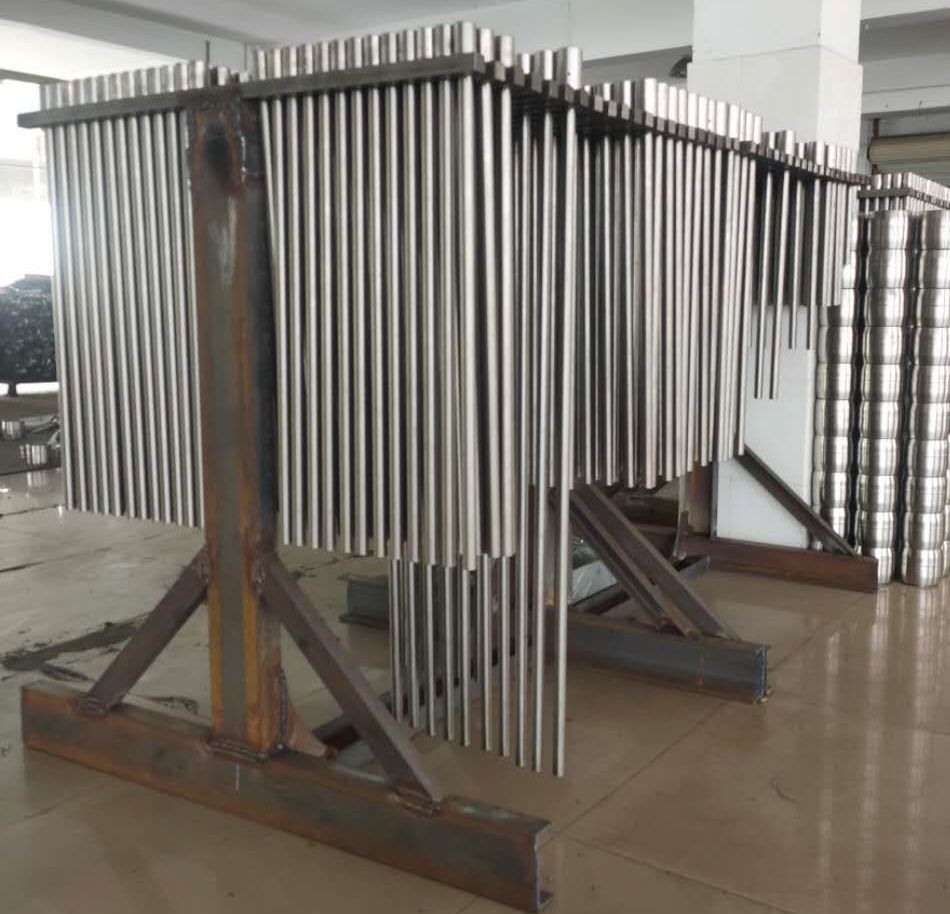

Component Pictures

Performance Data

MODEL	POWER		DELIVERY n ≈2850 r/min
3~380v/415v	KW	HP	Q m³/h l/min	0	50	80	100	125	140	160
3~380v/415v	KW	HP	Q m³/h l/min	0	833	133	1666	2000	2333	2866
10SP125-1	11	15	H(m)/ outlet(inch) 5''	30	28	24	22	20	17	13
10SP125-2	22	30		59	55	49	45	40	35	26
10SP125-3	30	40		87	83	74	67	50	53	40
10SP125-4	37	50		115	110	96	91	80	70	52
10SP125-5	55	75		146	141	127	118	100	95	62
10SP125-6	63	85		178	165	142	130	120	100	75
10SP125-7	75	100		208	192	165	152	140	115	89
10SP125-8	93	125		235	220	189	172	160	132	100
10SP125-9	93	125		264	248	214	195	180	150	112

MODEL	POWER		DELIVERY n ≈2850 r/min
3~380v/415v	KW	HP	Q m³/h l/min	0	100	120	140	160	180	200
3~380v/415v	KW	HP	Q m³/h l/min	0	1667	2000	2333	2667	3000	3333
10SP160-1	13	17.5	H(m)/ outlet(inch) 5''	33	25	23	22	20	18	16
10SP160-2	26	35		65	50	46	44	40	36	31
10SP160-3	37	50		99	75	69	66	60	52	47
10SP160-4	55	75		132	100	92	88	80	72	65
10SP160-5	63	85		160	135	118	110	100	90	80
10SP160-6	75	100		198	150	138	130	120	108	98
10SP160-7	93	125		231	175	161	152	140	136	113
10SP160-8	93	125		264	200	183	174	160	144	130
10SP160-9	110	150		297	225	205	195	180	162	145
