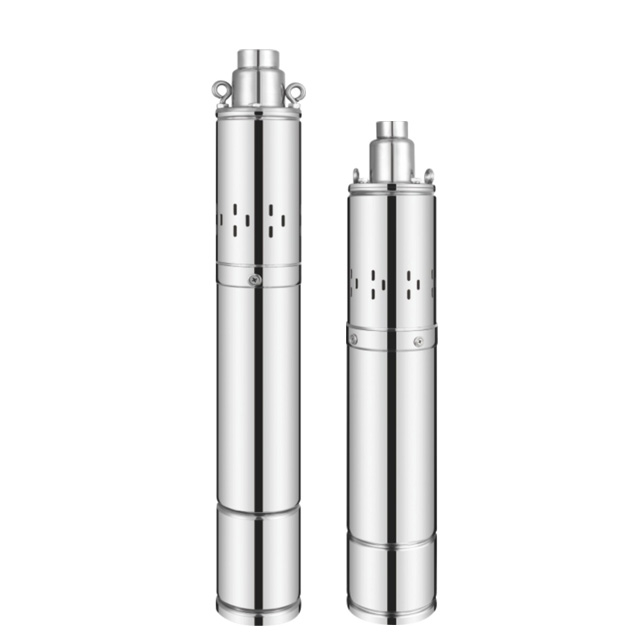

QGD Submersible Screw Water PUMP

  • Minimum well diameter : 2"/3"/4"
  • Maximum fluid temperature up to : +-35 ºC
  • Maximum sand content : 3%
  • Maximum immersion depth : 12m
  • Single-phase : 220V-240V/50Hz
  • Three-phase : 380V-415V/50Hz
Availability:
Quantity:
Inquire Add to Basket

  • 4QGD2.5-60

  • KATREENI

  • 8413701090

Product  Description



QGD

Applications

For Water supply from wells or reservoirs

For Sprinkler irrigaton

For domestic use, for civil and industrial applications

For garden use and irrigation


Motor and Pump

Rewindable motor or fully enclosed shielding motor

Dimension complied with NEMA standard


Curve tolerance accord with ISO9906

Options on Request

Special material components

Start control box or automatic digital control box

Cable length

Other voltages or frequency 60Hz

Single phase motor with built-in capacitor


Componet Material

Components Material
Delivery casing AISI 304SS
Strainer AISI 304SS
Moter External Casing AISI 304SS
Top chock Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Graphite-Ceramic/TC
Shaft AISI 303 SS-ASTM 1045


Componet Picture

螺杆
网
配件


Product Parameters

Performance Data

MODEL POWER MAX.FLOW

MAX.

HEAD

(m)

VOLTAGE

(V)

MAX.

DIA

(mm)

OUTLET

(inch)

 LENGTH(mm)
KW HP (l/min) (m3/h)
2QGD0.3-30-0.18 0.18 0.25 17 1 55 220V 52 1/2'' 633
3QGD1-25-0.25 0.25 0.33 28 1.7 70 76 1'' 577
3QGD1.2-30-0.37 0.37 0.5 30 1.8 90 607
3QGD1.2-50-0.55 0.55 0.75 32 1.9 110 647
3.5QGD1-30-0.18 0.18 0.25 25 1.5 85 90 512
3.5QGD1-40-0.25 0.25 0.33 25 1.5 95 522
3.5QGD1-50-0.37 0.37 0.5 30 1.8 95 532
3.5QGD1.8-40-0.55 0.55 0.75 43 2.6 110 571
3.5QGD1.8-50-0.75 0.75 1 43 2.6 125 596
4QGD1.2-40-0.25 0.25 0.33 32 1.9 100 102(96) 523(513)
4QGD1.2-50-0.37 0.37 0.5 32 1.9 110 536(526)
4QGD1.8-40-0.5 0.5 0.7 48 2.9 100 566(556)
4QGD1.8-50-0.55 0.55 0.75 48 2.9 110 576(556)
4QGD2-60-0.75 0.75 1 48 2.9 155 608(598)
4QGD2-100-0.75 0.75 1 48 2.9 155 608(598)


Performance Curve

4QGD曲线


Production Corner

生产图

Optional package


包装图

Transport Line

运输流程



Why Choose Us


工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificate

证书1
证书2
证书3


Workshop Corner

车间



Exhibition


展会


展会2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.

Previous:
Next:
QGD SUBMERSIBLE PUMP Special water pump Stainless steel screw pump Mini screw stainless steel borehole water pump

Related Products

4SD Series stainless steel submersible deep well pump for irrigation
4SD Series stainless steel submersible deep well pump for irrigation
Katreeni R95-A Submersible Deep Well Pump for Agricultural
Katreeni R95-A Submersible Deep Well Pump for Agricultural
6SP60 Stainless Steel Submersible Pump Electric Water Pump for Pressure
6SP60 Stainless Steel Submersible Pump Electric Water Pump for Pressure
3QJZ DC Submersible Solar Pump
3QJZ DC Submersible Solar Pump

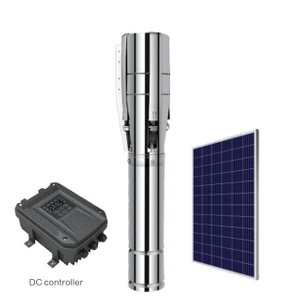

4DCSP DC Brushless Deep Well Solar Pump
