| Quantity: | |
|---|---|

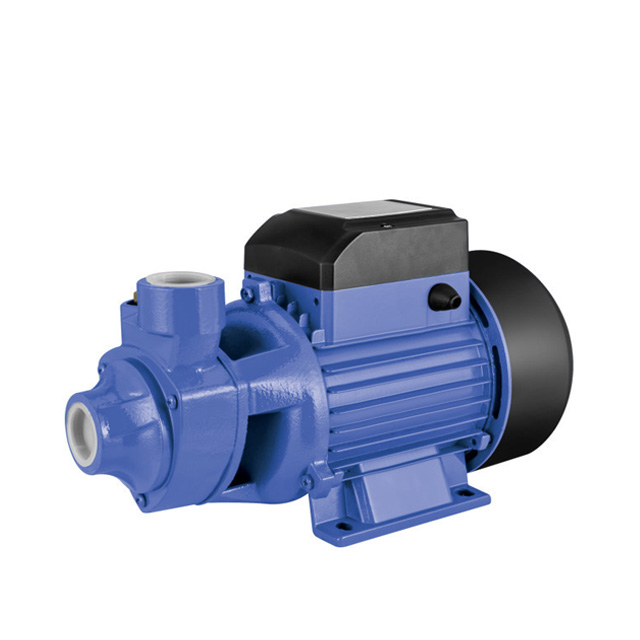

QB60-0.37
KATREENI
8413701090
Product Introduction
Description
QB type vortex mini water pump , is kind of booster pump,centrifugal pump, mainly used in hot water booster, farmland irrigation, water supply for house. car washing. it need to be filled with water in the pump before use it . its advantage is low noise, high lift and energy saving .
Component Materials
| Component | Material |
| Pump body | Cast iron |
| Winding | Copper |
| Impeller | Brass |
| Motor housing | Aluminum |
| Pump support | Cast iron/ Aluminum |
| Shaft with rotor | AISI416/304 SS |
| Mechanical seal | Carbon/ Ceramic |
| Bearing | Ceramic/Graphite |
| Cooling | External ventilation |
Performance Data
| MODEL | POWER | Max. FLOW (M3/H) | Max. Head(m) | Head Range(m) | Max. Suction(m) | Outlet size(Inch) | Packing Dim. (L*W*H) | |
| Single-Phase | KW | HP | ||||||
| QB 60 | 0.37 | 0.5 | 2.4 | 33 | 1-27 | 8 | 1'' | 405*285*340 |
| QB 70 | 0.55 | 0.75 | 3 | 48 | 1.5-44 | 8 | 1'' | 425*245*375 |
| QB 80 | 0.75 | 1 | 3.6 | 60 | 2.5-53 | 8 | 1'' | 425*245*375 |
Performance Curve
