200KBD33.7-30
KATREENI
8413701090
Features

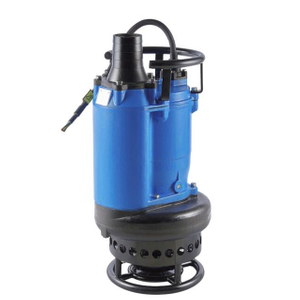

The cast iron construction of our KBS series extends pump life by preventing premature wear and failure from the abrasive materials found in mining and construction applications. Available in a variety of discharge sizes and horsepower, the KBS pumps are engineered to withstand even the most rigorous situations.
4 pole, 1800 rpm motors reduce impeller tip speed and extend parts wear life.
High chrome alloy impeller combined with agitator for pumping heavy slurry.
Insulation class: F
Protection class: IP68
Cable length: 8m, other length optional
Water temperature: up to 40° C
Max immersion depth: 25m
Application
Civel engineering
Mines, quarries, coal ore & slurries
Sewage treatment plants
General pumping purposes
Pumping fluid: sludge,liquids-containing
Mud and bentonite
Special Features on Request
Other voltages(440V 460V 660V)
The length of cable is optional
Curves
Performance Date
