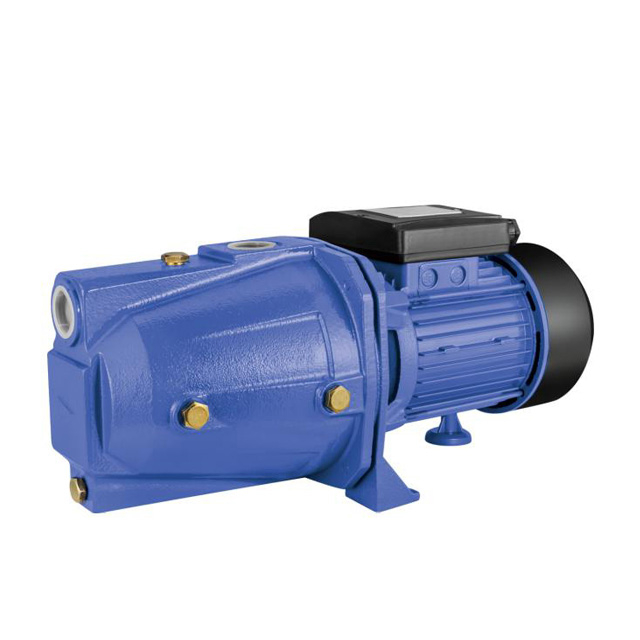

Hot Sell High Pressure 220V Self-priming Electric Jet Water Booster Pump

  • Max suction : 8m
  • Max liquid temperature : +40oC
  • Max. working pressure : 5 bar
  • Liquid PH value : 6.5-8.5
  • The Max pressure of pump body  : 0.6MPa.
  • 110V/127V/220V/380V440V,50Hz/60Hz available.
Availability:
Quantity:
  • Jet 10LM

  • KATREENI

  • 8413701090

Product  Introduction
The self-priming jet pump has the characteristics of automaic , large flow and high head. With all copper motor, stainless steel shaft, strong power.  Mainly used for well water, farmland irrigation, water pressure, for high-rise water, the max suction is 8 m,  voltage 220V-380V

JET-LM

Application

1.Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.

2.Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.


Specification & Features

Insulation class: F

Protection Class: IPX4

Built-in protector




Component Materials

Component Material
Pump body & Support Cast iron
Impeller Brass/AISI304/Engineering PPO
Shaft AISI304
Cooling External ventilation


Performance Data

Model Power

Max.

Flow

(l/min)

Max.

Head

(m)

Head

Range

(m)

Max.

Suct.

(m)

Inlet/

Outlet

(in)

Packing Dim.

(L*W*H)

kW Hp
JET06LM 0.45

0.6

36 40 5-40 9 1'' 440*200*230
JET08LM 0.6 0.8 38 45 5-45 9 1'' 440*200*230
JET10LM 0.75 1 45 50 7-50 9 1'' 440*200*230
JET12LM 1.1 1.5 55 60 9-60 9 1'' 460*200*230


Performance Curve

JET-LM

 Production Corner

Jet 生产图

Why Choose Us

工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificate

证书1
证书2
证书3


Workshop Corner

车间2

Exhibition

展会


展会2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
