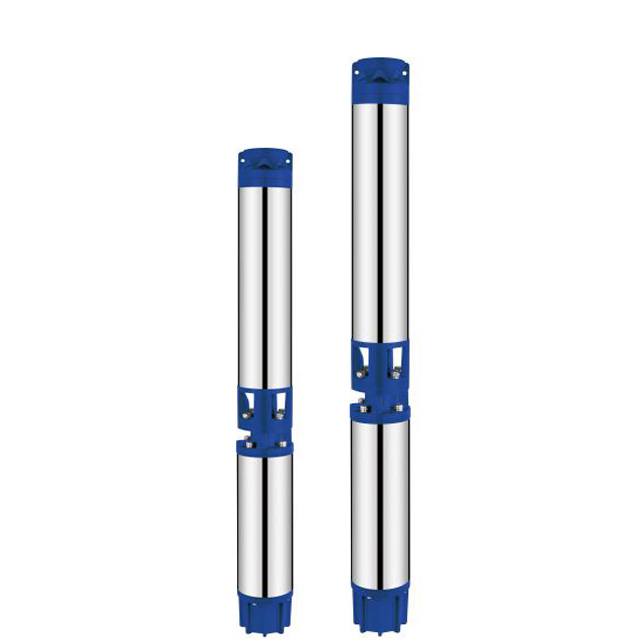

Electric Powered Garden Fountain Pump with Submersible Motor

Product   Description

  Suitable for clean water with a sand content of no more than 100 g/m3.

Because of their high efficiency and reliability, they are suitable for use in civil, agricultural and industrial applications such as the distribution of water in combination with pressure tanks, for agricultural irrigation and fountain, for pressure boosting in fire-fighting sets, etc.

Applications

Water supply

Sprinkler irrigaton

pressure boosting

Fire-fighting

Fountain & Water Feature Pumps

Electric  Motor

Two-pole induction motor, 50Hz(n=2850rpm)

Single phase 220V-240V

With thermal protector incorporated into the winding.

Available with the start control box or automatic control box

Three phase 380V-415V

With thermal protector incorporated into the winding

Available with the automatic control box

Insulation class F

Protection IP68

Specifications

Rewindable motor or fully enclosed shielding motor

Dimension complied with NEMA standard

Curve tolerance accord with ISO9906

Options on Request

Special material components

Start control box or automatic digital control box

Cable length

Other voltages or frequency 60Hz

Components                  Material

PERFORMANCE   DATA
