DC QB60 Brushless Peripheral Solar Water Pump

Solar votex pump can be connected to 2-4 block solar panels by a controller as the driving enegy source, it can change the purpose of the adjustable power resistance switch to change the flow and the routine. when there is no sunlight, it can be powered by 24, 48 ,72V DC power supply. the control box has an MPPT function to detect the power generation voltae of the solar panel in time, to charge the battery with max output power.
Availability:
Quantity:
  • DCQB2-30-24

  • KATREENI

  • 8413701090

Product Introduction

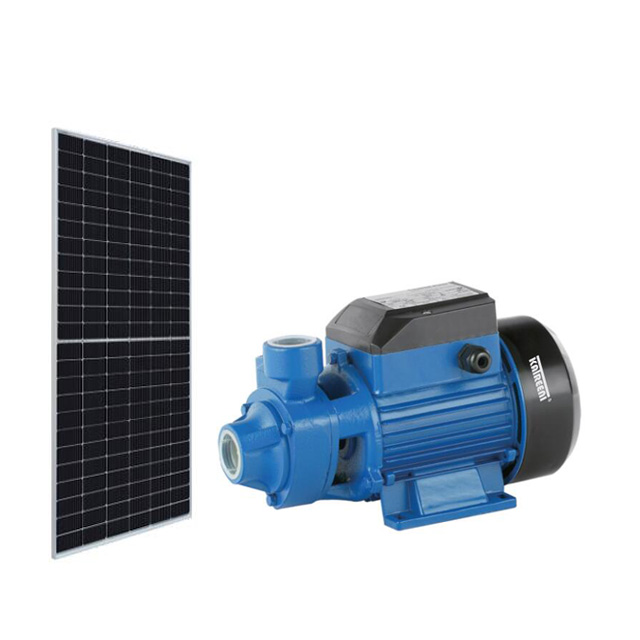

QB60 SOLAR

Advantage

Easy for installation and connection

MPPT function to reach best performance in any moment

Smart control and automatic protection

Saving cost, Economic

Environmental protection and energy saving


Application

Farmland irrigation

Garden irrigation

Desert area water supply

Living water supply

Pressure booster






Component Materials

Component Material
Outlet Iron/stainless steel
Pump head iron/stainless steel
Impeller Brass
Winding Copper
Motor Permanent magnet DC brushless motor
Cable 1.2m
Air cooling MPPT function controller



Performance Data


Item

Voltage

(V)

Best input

Voltage

(DC)

Power

(w)

Max.

Flow

(m3/h)

Max.

Head

(m)

Outlet

(in)

Open circuit

Voltage

(VOC)

Solar Panels Suggestion

Voltage

(V)

Power

(w)

Quantity

(pcs)

DCQB2-25-24-210 24 30-48V 210 2 25 1''x1'' <50V 36 300 1
DCQB2-30-24-280 24 30-48V 280 2 30 1''x1'' <50V 36 250 2
DCQB3-50-48-550 48 60-90V 550 3 50 1''x1'' <100V 36 250 4
DCQB3-65-72-750 72 90-120V 750 3 65 1''x1'' <150v 36 330 3




Performance Curve

DCQB2 曲线

                                                                   FLOW (m3/h)



Production Corner

QDS PRODUCTION



Optional package

包装图


Transport Line

Zhejiang-Dolay-Pump-Industry-Co-Ltd- (83)

Why Choose Us

工厂图


KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificates

证书1
证书2
证书3


Exhibtion

展会
展会2


Workshop Corner

车间2


FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
