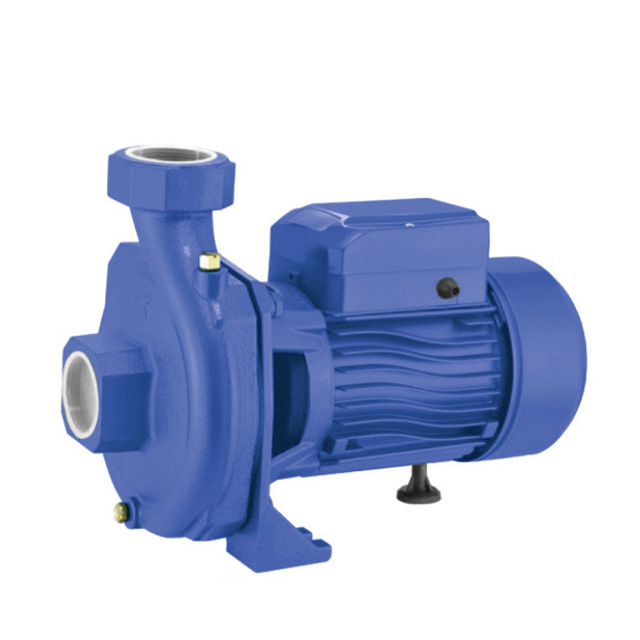

CM30 Centrifugal Water Pump

Max suction : 8m
Max liquid temperature : +40oC
Max. working pressure : 5 bar
Liquid PH value : 6.5-8.5
The Max pressure of pump body  : 0.6MPa.
Max ambient temperature: 55oC
Insulation Class : B
Protection Class : IP44
110V/127V/220V/380V440V,50Hz/60Hz available.


Availability:
Quantity:
  • CM30

  • KATREENI

  • 8413701090

Product Introduction

CM

Application

Can be used to transfer clean water or other liquids similar to water

in physical and chemical properties

For industry use and urban water supply

Pressure boosting for high building

For garden and farmland irrigation

Fire fighting


Component Materials

Component Material
Pump body Cast iron
Pump support Cast iron
Impeller Brass/AISI 304
Diffuser Noryl
Shaft Stainless steel welded/electroplated iron
Thermal protector built in or without
Mechanical seal Carbon/ Ceramic
Motor housing Aluminum


Performance Data

Model Power Max. Flow (m3/H) Max. Head (m) Head Range (m) Max.Suction (m) Outlet Size (inch) Packing Dim (L*W*H)
KW HP
CPM130 0.37 0.5 6 22 11-22 7 1'' 285*185*230
CPM146 0.55 0.75 6.6 26 12-26 7 1'' 340*210*265
CPM158 0.75 1 7.2 32 13-32 7 1'' 340*210*265
CPM170 1.1 1.5 7.8 40 25-40 7 1'' 390*240*290
CPM190 1.5 2 7.8 48 31-48 7 1'' 390*260*320
CPM200 2.2 3 8.4 55 23-55 7 1'' 455*280*340
CM20 0.75 1 15.6 20 5-20 8 1.5'' 360*260*325
CM30 1.1 1.5 23.4 25 6-25 8 1.5'' 290*190*240
CM70 1.5 2 24 30 8-30 8 2'' 310*220*270


Performance Curve

CPM曲线

Why Choose Us

工厂图

KATREENI has been operating in the water pump industry for years.

It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.

We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.

We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.

Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.


Certificate

证书1
证书2
证书3


Workshop Corner

车间


Exhibition

展会


展会2

FAQ

1. Q: What is your warranty?

A: 12-18 months' warrantv, depending on product and market

2. Q: What is your MOQ?
A: Sample order is acceptable.

3.Q: What's your payment terms?
A: T/T, L/C, D/P...

4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.

5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.

6.Q:Can you accept customized products?
A: Yes, we accept special requirement.

7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
