Availability: | |
---|---|
Quantity: | |
4DCI-400(B)
KATREENI
8413701090

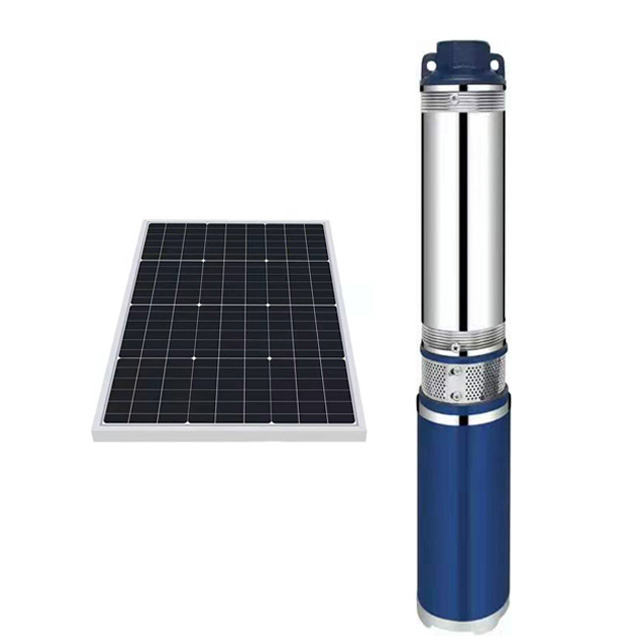

4 Inch DC Solar Borehole Water Pump
Applications
Water supply
Sprinkler irrigaton
pressure boosting
Fire-fighting
Operating Conditions
Minimum well diameter: 4"
Maximum fluid temperature up to: +35 ºC
Maximum sand content: 0.25%
Maximum immersion depth: 50m
Specifications
Rewindable motor or fully enclosed shielding motor
Voltage DC(V) : 60-110V
Dimension complied with NEMA standard
Curve tolerance accord with ISO9906
Component Materials
Component | Material |
Outlet | Iron |
Pump Head | Iron |
Pump Body | Stainless Steel |
Impeller | Plastic |
Motor | DC brush motor |
Cable | 20m |
Performance Data
Item | Voltage (V) | Power (w) | Max. Flow (m3/h) | Max. Head (m) | Outlet (Inch) | Cable (m) |
4DCI-400(B) | 60 | 400 | 3.5 | 60 | 1.5'' | 15 |
4DCI-600(B) | 72 | 600 | 3.5 | 80 | 1.5'' | 15 |
4DCI-750(B) | 96 | 750 | 3.5 | 100 | 1.5'' | 15 |
4DCI-900(B) | 110 | 900 | 3.5 | 120 | 1.5'' | 15 |
Production Corner
4 Inch DC Solar Borehole Water Pump
Applications
Water supply
Sprinkler irrigaton
pressure boosting
Fire-fighting
Operating Conditions
Minimum well diameter: 4"
Maximum fluid temperature up to: +35 ºC
Maximum sand content: 0.25%
Maximum immersion depth: 50m
Specifications
Rewindable motor or fully enclosed shielding motor
Voltage DC(V) : 60-110V
Dimension complied with NEMA standard
Curve tolerance accord with ISO9906
Component Materials
Component | Material |
Outlet | Iron |
Pump Head | Iron |
Pump Body | Stainless Steel |
Impeller | Plastic |
Motor | DC brush motor |
Cable | 20m |
Performance Data
Item | Voltage (V) | Power (w) | Max. Flow (m3/h) | Max. Head (m) | Outlet (Inch) | Cable (m) |
4DCI-400(B) | 60 | 400 | 3.5 | 60 | 1.5'' | 15 |
4DCI-600(B) | 72 | 600 | 3.5 | 80 | 1.5'' | 15 |
4DCI-750(B) | 96 | 750 | 3.5 | 100 | 1.5'' | 15 |
4DCI-900(B) | 110 | 900 | 3.5 | 120 | 1.5'' | 15 |
Production Corner
Optional package
Transport Line
Optional package
Transport Line
Why Choose Us
KATREENI has been operating in the water pump industry for years.
It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.
We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.
We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.
Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.
Certificates
Exhibition
Workshop Corner
Why Choose Us
KATREENI has been operating in the water pump industry for years.
It is a company that is committed to study, develop, manufacture and integrate and industrialize the superior of various manufacturers.
We offer to customers a big and specific range of submersible pumps for a large variety of uses: domestic and civil applications for deep water level, agricultural irrigation for big flow and heavy sand demand, industrial fields for chemical rast request, waste water and sewage applications driven by AC electricity and DC solar energy. We are one of earliest and most professional in building solar pumping systems and household solar system for customers.
We devote to provide people the best quality and the best cost-effective water pumps and water solutions. We have professional engineering and strict QC team. We have rich experiences in different markets and professional knowleges of pumps and environment. All these gurantees our promises with our customers.
Our company has the purpose to contribute to the transformation from "Made in China" to " Intelligence of China". To satisfy the needs of customers who choose us and trust us, we have been and will be keeping on improving.
Certificates
Exhibition
Workshop Corner
FAQ
1. Q: What is your warranty?
A: 12-18 months' warrantv, depending on product and market
2. Q: What is your MOQ?
A: Sample order is acceptable.
3.Q: What's your payment terms?
A: T/T, L/C, D/P...
4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.
5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.
6.Q:Can you accept customized products?
A: Yes, we accept special requirement.
7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
FAQ
1. Q: What is your warranty?
A: 12-18 months' warrantv, depending on product and market
2. Q: What is your MOQ?
A: Sample order is acceptable.
3.Q: What's your payment terms?
A: T/T, L/C, D/P...
4.Q: What's the delivery time?
A: 10-30 days after receiving deposit payment.
5.Q: Can you do OEM brand?
A: Yes, we welcome OEM order.
6.Q:Can you accept customized products?
A: Yes, we accept special requirement.
7.Q:How about your service?
A: We have pre-sale service, in-sale service and after-sale service, Our slogan is steady quality and continuous service.
