6SP30-8
KATREENI
8413701090
Product Introduction

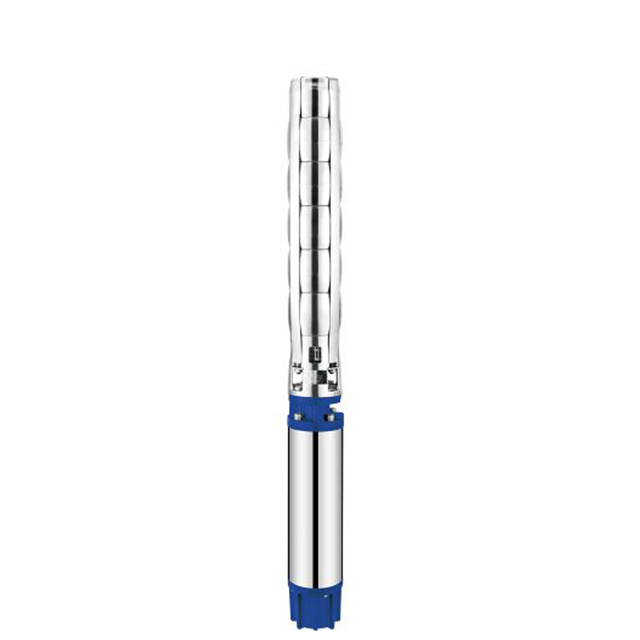

6SP series well submersible pump is a new energy-saving aquatic products, widely used for farmland irrigation, industrial and mining enterprises drainage and people in the plateau mountain water, and diving motor together into diving underwater work. It has simple operation, small volume, light weight, convenient installation and maintenance, safe and reliable operation, high efficiency and energy saving.
Product Advantages
Submersible motor adopts high temperature resistant cream lead wire, stainless steel outlet strong wear resistance, built-in heat protector can product motor, sand resistant floating stainless steel impeller, wear resistant, pressure resistant graded impeller can absorb water for many times, high flow and high elevation. Using decompression oil capsules, the dive depth can reach 130 meters, designed for low voltage start, and the electric pump can be set at 160V-230V Normal work, stainless steel motor shaft, longer wear resistance life. Oil immersion motor, using food grade mechanical oil, fast heat dissipation, good cooling effect, do not pollute the water source.
Applications
For Water supply from wells or reservoirs
For Sprinkler irrigaton
For domestic use, for civil and industrial applications
For garden use and irrigation
Motor and Pump
Rewindable motor or full obturated screen motor
1.direct start(1 cable) 2. star-delta start(2 cables)
Dimension complied with NEMA standard
Curve tolerance accord with ISO2548
Maxum diameter: 130mm&135mm
Options on Request
Special material components
Start control box or automatic digital control box
Cable length
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Features
Brand name : KATREENI
Type of product : Oil(Water) filled deep well submersible pump
Head (M) : 8-329Mtrs
Suitable for : 145MM & above bore dia.
Boewell Size : 6 Inch(145MM)
Our Service
1.We provide you 100% guarantee product and serice, one year waranty from the dispatched time.
2.Many years experiment for producing submersible water pump.
3.Professional on exporting business.
4.Fastand cheap delivery. we have long-term cooperation partners. we can deliver our product with competitive freight.
Curves
PERFORMANCE DATA
