Applications

For Water supply from wells or reservoirs

For Sprinkler irrigaton

For domestic use, for civil and industrial applications

For garden use and irrigation

Operating  conditions

Minimum well diameter: 5"

Maximum fluid temperature up to: +-35 ºC

Maximum sand content: 0.25%

Maximum immersion depth: 80m

Motor and Pump

Rewindable motor or full obturated screen motor

1.direct start(1 cable)  2. star-delta start(2 cables)

Single-phase: 220V-240V/50Hz

Three-phase: 380V-415V/50Hz

Dimension complied with NEMA standard

Curve tolerance accord with ISO2548

Maximum diameter :130mm &135mm

Options on request

Special material components

Start control box or automatic digital control box

Cable length

Other voltages or frequency 60Hz

Single phase motor with built-in capacitor

PERFORMANCE DATA

Components                        Material

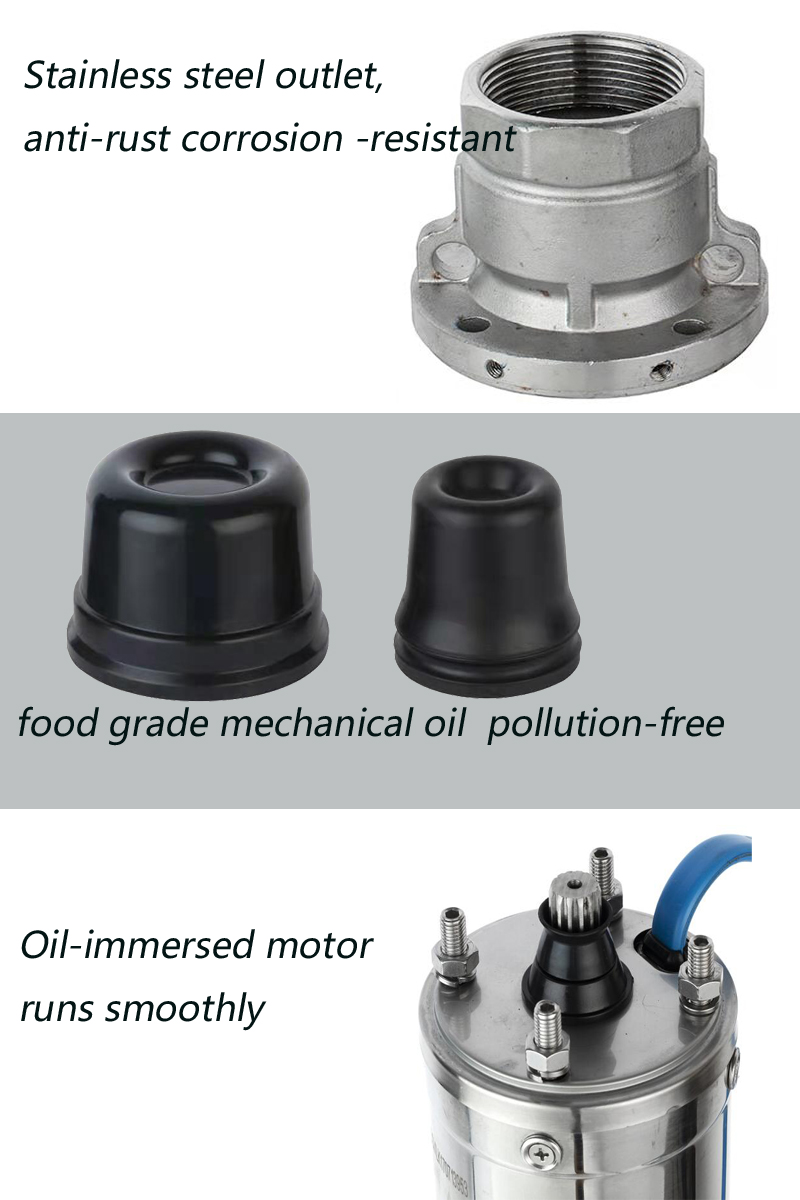

Core technology

Production Corner

Application Scene
