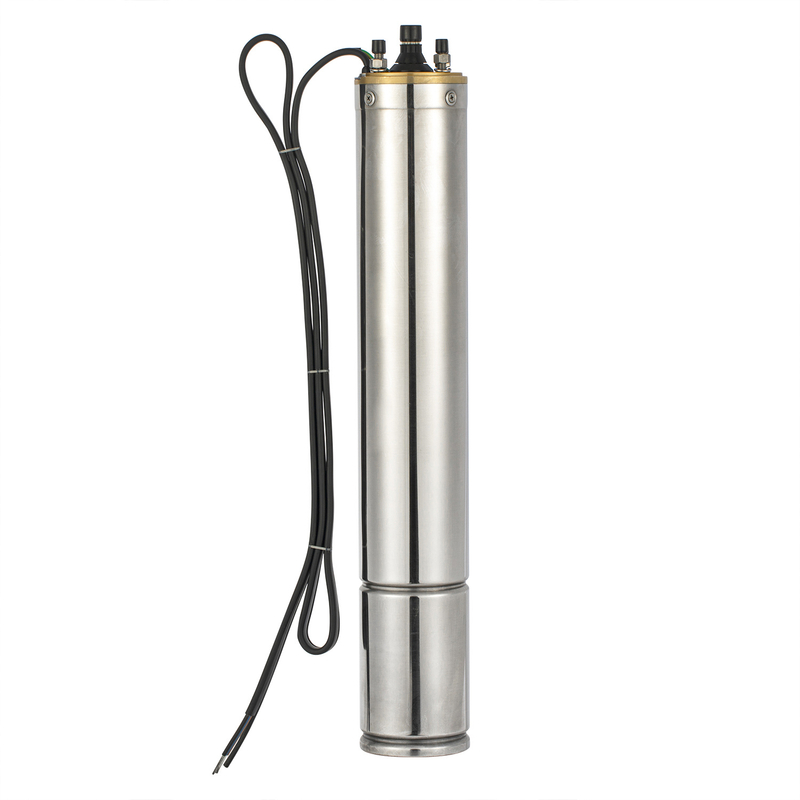

4'' motor
KATREENI
Product Description
Component Materials
| Component | Material |
| Motor External Casing | AiSi 304 SS |
| Top Chock | Cast-Iron ASTM NO.30 |
| Bottom Support | AiSi 304 SS |
| Mechanical Seal | Special Seal for Deep Well(Graphite-ceramic) |
| Thrust bearing | Angular contact bearing |
| Shaft | AiSi 304 SS |
| Seal Lubricant Oil | Oil for food machinery and pharmaceutic use |
Performance Data
| Model | Power | Rated Speed(Rpm) | |
| KW | HP | ||
| H4-033 | 0.25 | 0.33 | 2850 |
| H4-055 | 0.37 | 0.5 | |
| H4-075 | 0.55 | 0.75 | |
| H4-085 | 0.63 | 0.85 | |
| H4-100 | 0.75 | 1 | |
| H4-125 | 0.92 | 1.25 | |
| H4-150 | 1.1 | 1.5 | |
| H4-180 | 1.3 | 1.8 | |
| H4-200 | 1.5 | 2 | |
| H4-250 | 1.8 | 2.5 | |
| H4-300 | 2.2 | 3 | |
| H4-350 | 2.6 | 3.5 | |
| H4-400 | 3 | 4 | |
| H4-500 | 3.7 | 5 | |
| H4-550 | 4 | 5.5 | |
| H4-630 | 4.7 | 6.3 | |
| H4-750 | 5.5 | 7.5 | |
| H4-1000 | 7.5 | 10 | |
