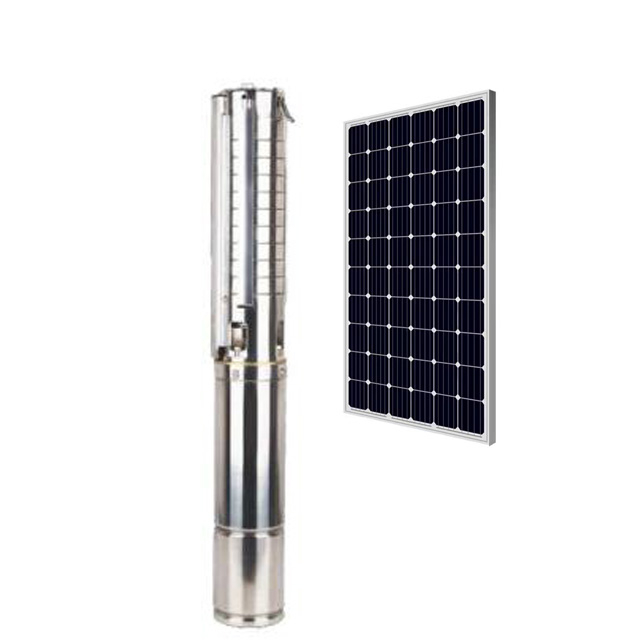

3PSS DC Submersible Solar Pump

3PSS 3Inch DC submersible deep well water pump for irrigation

Application
Water supply

For fountains
For sprinkler irrigation of agriculture
For Pressure boosting

For remote areas, farming

Operating Conditions
Minimum well diameter: 3"
Maximum fluid temperature: 35^oC
Maximum sand content: 0.25%
Maximum immersion depth: 80m

Specifications
Rewindable motor or fully enclosed shielding motor
Dimension complied with NEMA standard
Curve tolerance accord with ISO9906

Max head : 5-200m

Max flow :  40-170L/min

Power : 0.75hp-7.5hp

Motor : DC motor & AC motor

Options on request
Special material components
Start control box or automatic digital control box
Cable length
Other voltages or frequency 60Hz
Single phase motor with built-in Capacitor

Control box

Waterproof level:   IP65
Working environment temperature:   -15-60^oC
MPPT function:  the highest solar energy utilization
Automatic charging function:  to ensure that the solar pump works normally while charging.
in the absence of sunlight,the battery can make the solar pump work continuously,
Digital display of power: voltage, current, speed
Frequency conversion function:  can automatically operate according to the sunlight power.
Automatically power on and off
Good waterproof and tightness, double-layer sealing
Soft start:  no inrush current, protection of pump motor
high/low pressure, over current,  high temperature protection

 CURVES
